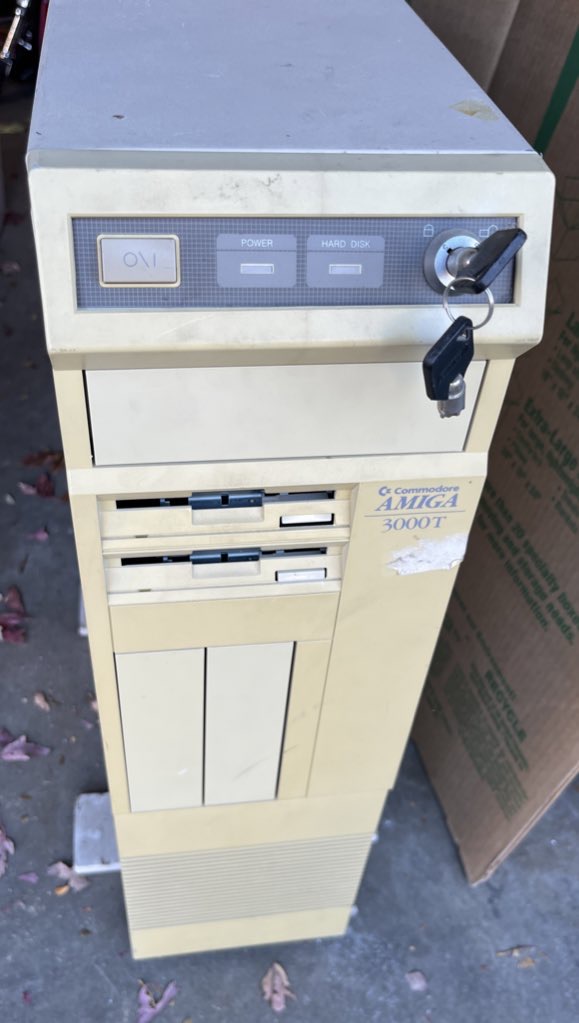

Commodore Amiga 3000T

← Back to the Collection

Released

1991

Discontinued

1992

Operating System

Amiga OS/Kickstart 3.1

Acquired

November, 2022

Working and functional.

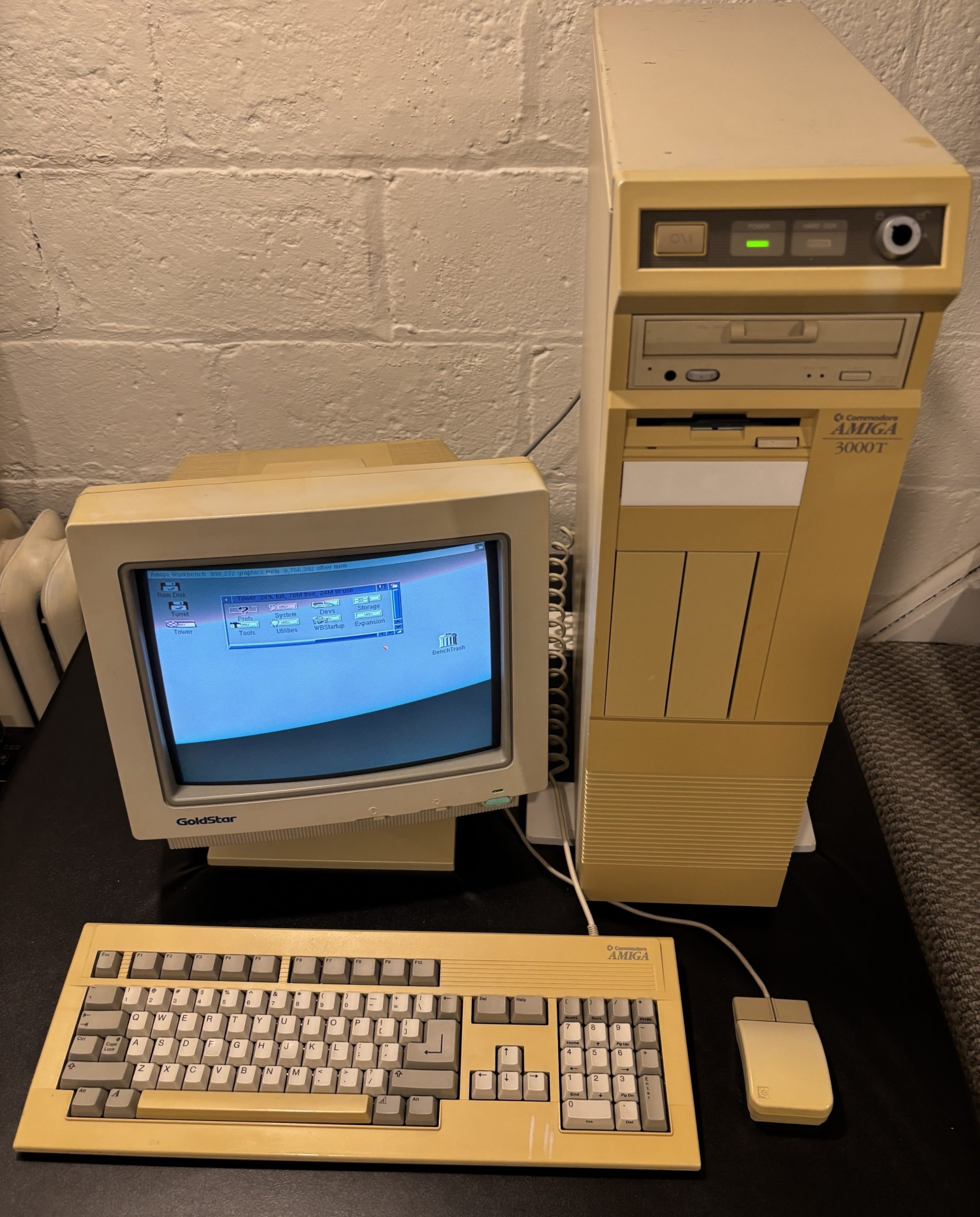

This Machine

• Motorola 68030 CPU at 25MHz

• 2mb Chip RAM

• 4mb Fast RAM via ZIP chips

• 340mb Quantum SCSI hard disk

• 2x SCSI CD-ROM

• 512K ROM

• 1 1760K internal high density floppy drive (Chinon FZ-357A)

• Updated AMD AM33C93A SCSI Controller

• CyberVision 64 video card

• 8mb GVP RAM card

• MacroSystem VLab capture card

• Internal video driven by ECS Denise

• Sound driven by Paula

• Ports:

  • 25 Pin RS-232 Serial

  • 23 Pin Floppy

  • 25 Pin SCSI-1

  • 25 Pin Parallel/Printer

  • 23 Pin Amiga RGB

  • 15 Pin VGA

  • 2 RCA Audio out

  • 5 Pin Keyboard

  • 2 9 Pin Mouse/Joystick

Resources

• Schematic

• Amiga 3000 ZIP RAM Part Numbers

• Will the Amiga 3000 boot without...

• Commodore Amiga 3000T Capacitor List
