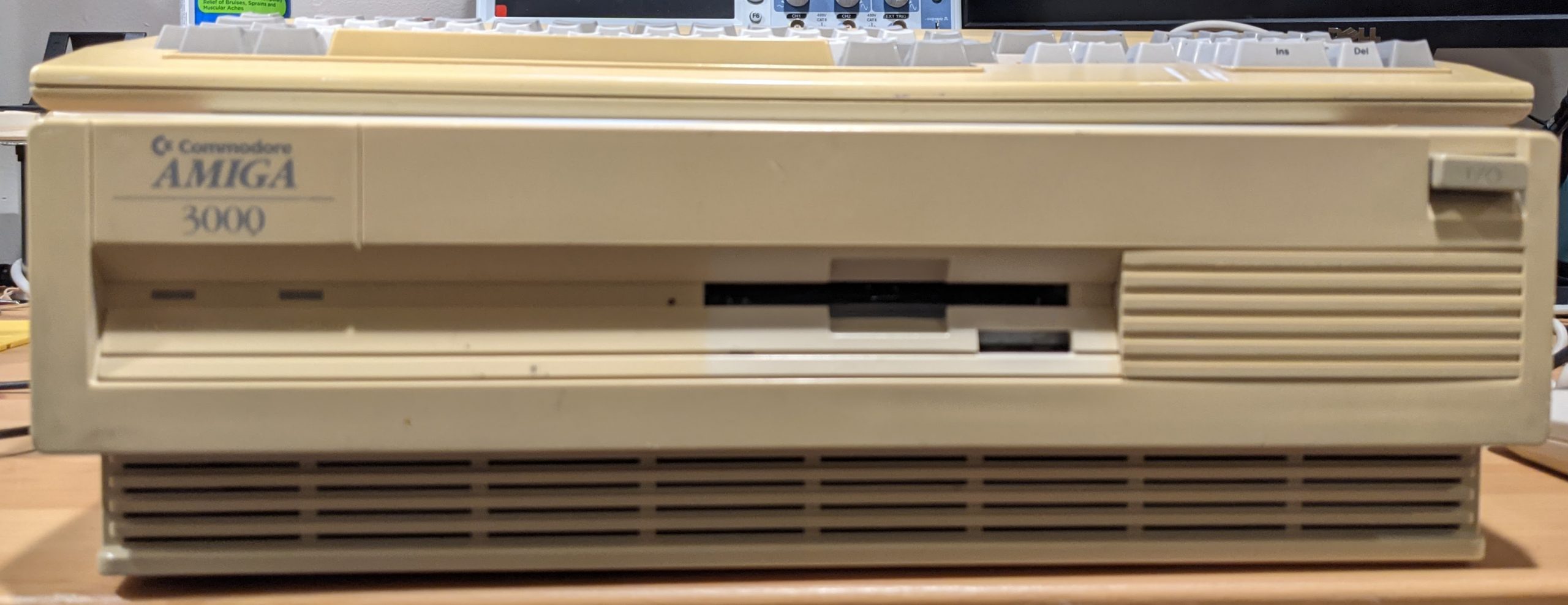

Commodore Amiga 3000

← Back to the Collection

Released

June, 1990

Discontinued

Fall, 1992

Operating System

Amiga OS/Kickstart 3.2 (originally 1.4/2.0)

Acquired

October, 2021

In full working condition.

This Machine

• Motorola 68030 CPU at 25MHz

• 2mb Chip RAM

• 12mb Fast RAM via ZIP chips

• 512K ROM

• 1760K internal high density floppy drive (Chinon FZ-357A)

• 1gb Seagate SCSI Hard Disk

• Updated AMD AM33C93A SCSI Controller

• Video driven by ECS Denise

• Sound driven by Paula

• Ports:

  • 25 Pin RS-232 Serial

  • 23 Pin Floppy

  • 25 Pin SCSI-1

  • 25 Pin Parallel/Printer

  • 23 Pin Amiga RGB

  • 15 Pin VGA

  • 2 RCA Audio out

  • 5 Pin Keyboard

  • 2 9 Pin Mouse/Joystick

Resources

• Schematic

• Amiga 3000 ZIP RAM Part Numbers

• Will the Amiga 3000 boot without...

• ZIPTest ADF - A writeable disk image of the ZIPTest 1.1 tool

Entries

• A Surprisingly Annoying Amiga 3000
