Apple Macintosh 512Ke

← Back to the Collection

Released

1986

Discontinued

1987

Operating System

Macintosh System Software 5.0 (System 4.2/Finder 6.0)

Acquired

1987

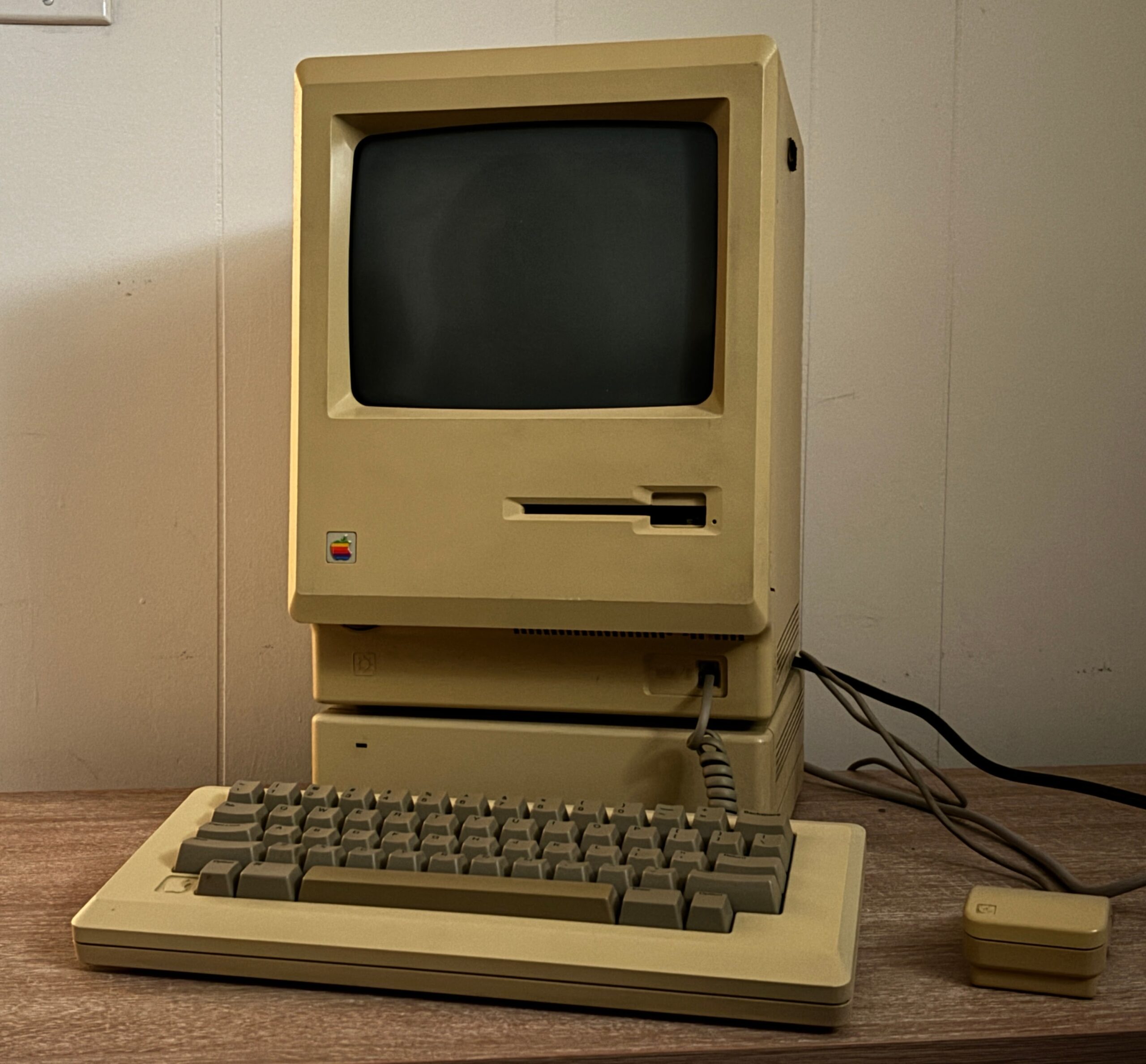

Also known as the Macintosh 512K/800, or model M0001E. This could be considered a Macintosh 512K with the Mac Plus ROMs and the 800K floppy drive. It lacks the RAM expansion and SCSI port of the Mac Plus, though the ROM would certainly support it. The pictured hard disk connects to the floppy drive port.

This Machine

• Motorola 68000 CPU at 8 MHz

• 512K RAM

• 128K ROM

• 512x384 resolution on internal 9" white phosphor CRT

• Sound driven by MOS 6522, capable of 4 voices in mono at 22 KHz, with assistance from the CPU

• 800K internal floppy drive

• External 20mb Apple HD20 (Rodime)

• Ports

  • 2 9 Pin RS-422 Serial, for modem and printer

  • 19 Pin Floppy/Hard Disk

  • 9 Pin Mouse

  • 3.5mm Audio out

  • RJ-11 Keyboard
